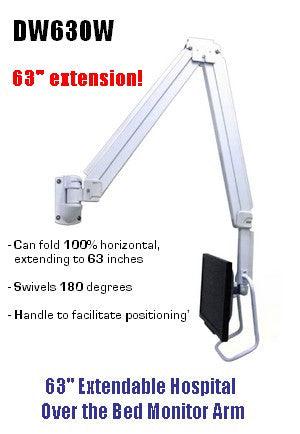

DW630W Extra Long Reach Wall Monitor Arm Over the Bed 63 inch long

DW630W Extra Long Reach Wall Monitor Arm for Over the Bed viewing

• For monitors from 12 to 18 lbs. or monitors from 6 - 11 lbs.
• 63" maximum horizontal extension
• 47" maximum drop from first section horizontal and second section vertically down.

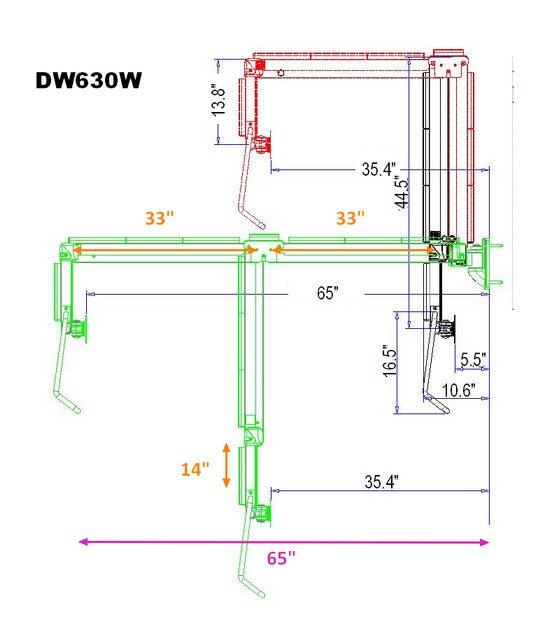

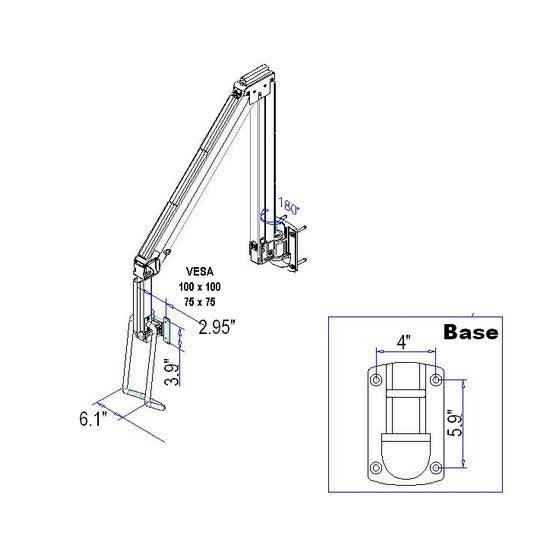

• Scroll down to see drawing with dimensions.
• Available keyboard tray add-on
• The monitor can face down, towards the headboard, to any side and even totally forward
• Heavy-duty
• Arm weight without monitor: 27 lbs.

  Includes fasteners for wood walls or studs and concrete walls (5/16" x 3")

Reg. Price: $755.00

• Limited Time Introductory Sale Price: $699.00
  + $65.00 Shipping (Ground contiguous U.S.)

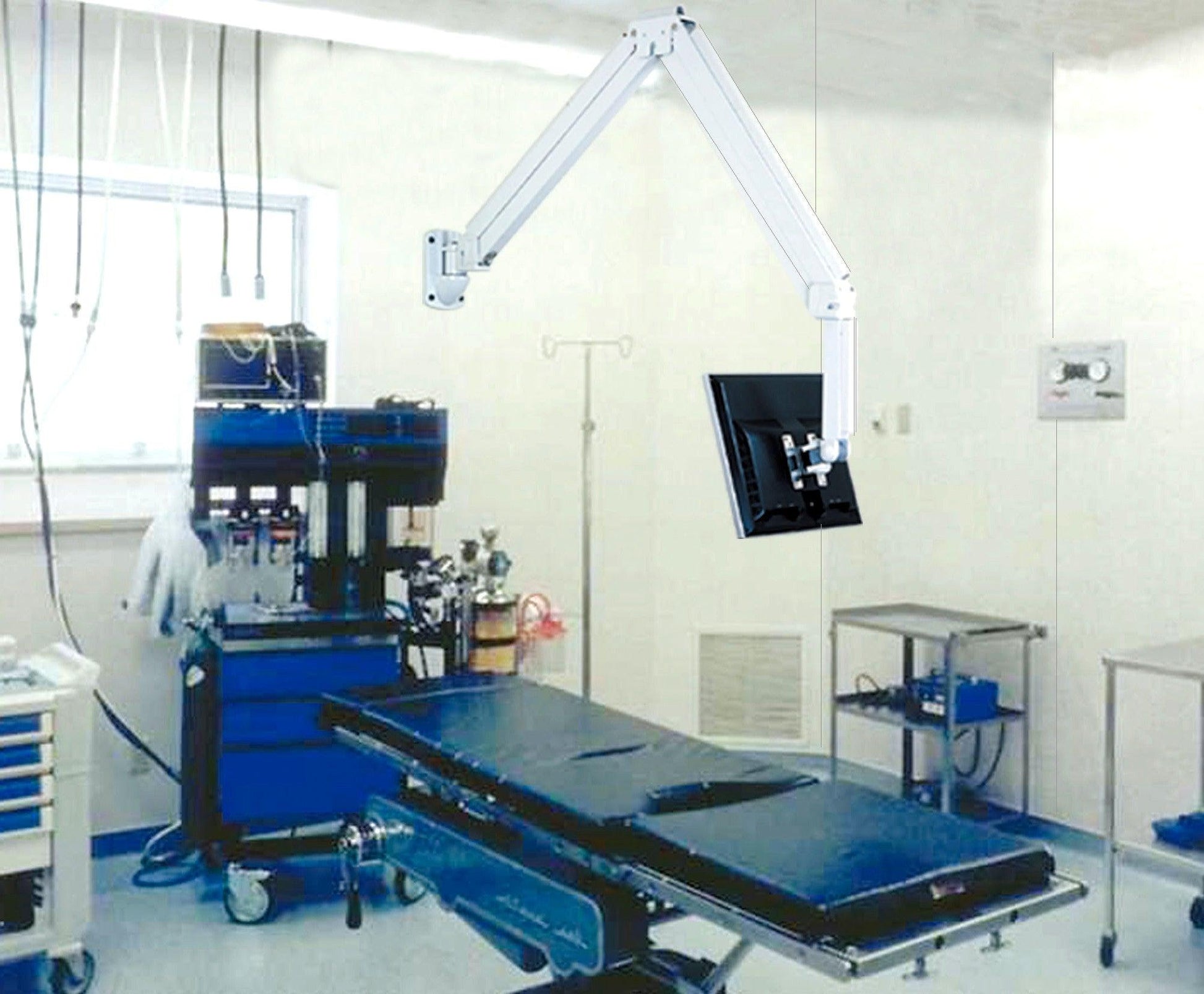

Introducing the DW630W 63-inch Hospital LCD Monitor Arm, the ultimate solution for demanding commercial and clinical environments. Engineered with a commercial heavy-duty construction and smooth gas spring mechanism, this mount extends to an extra-long reach of up to 63 inches, making it perfect for over-the-bed viewing or even complex industrial needs. When not in use, the arm stows cleanly back to the wall, featuring the reliable, compact design of equipment like dental X-ray arms. The monitor head offers maximum flexibility, able to face both the front and back towards the wall, ensuring optimal viewing angles for patients, staff, or industrial operators

This new extra-long (63") gas-assisted monitor wall arm is normally installed as an over-the-bed or dental-chair monitor arm, used at hospitals, assisted living facilities, dental practices, and homes. It can also be used in sitting or standing position where a long-reach monitor arm is required (dental practices, healthcare in general).  It can only be attached to a vertical surface (not to ceilings or floors). For ceilings check out the DC982CA.

The DW630 arm' monitor bracket swivels 90 degrees to each side and can be fully extended to 63" long. Can also be retracted all the way back to the wall.  Please scroll down to see 2 videos showing its range of motion and a drawing with the dimensions.

There are 2 versions depending on the weight of your monitor:

1) DW630-1218: for monitors weighing from 12 - 18 lbs
2) DW630-0611: for lighter monitors, only weighing from 6 - 11 lbs.

When placing an order, be careful to select the version matching the weight range of your monitor using the drop down menu. Please check the weight of your monitor before ordering, since the monitor will not stay in place if you choose the wrong version. Contact us with any questions.

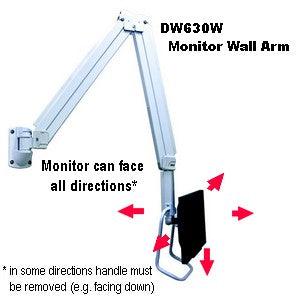

The long wall monitor arm allows to aim the monitor or TV in any position or move it out of the way when not in use. It can face each side and even 100% to the floor. IN addition, by removing the handle, it can also can be used as a forward-facing extra long monitor wall arm, as shown below.

 Click on the video below to see its range of motion:

 Scroll all the way down to see another video clip.

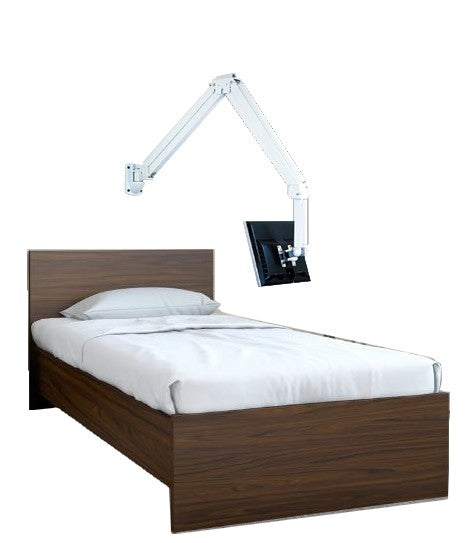

With the new gas assisted long reach DW630W wall monitor TV arm you can easily view your monitor in bed or on a medical or dental chair. Position the monitor arm over the bed in your desired position, and it will stay there.

In certain applications where you need even more tilting range, the handle can be removed. In the case of positioning the monitor to face forward instead as the default position (towards the wall where it is attached to), the handle can be re-attached. With the handle removed, the monitor bracket's total swivel capability of 180 degrees side to side and 180 degrees front to back.

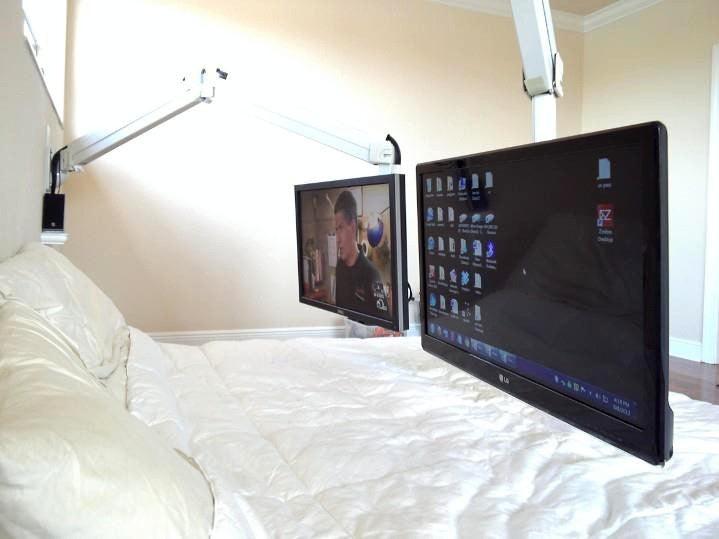

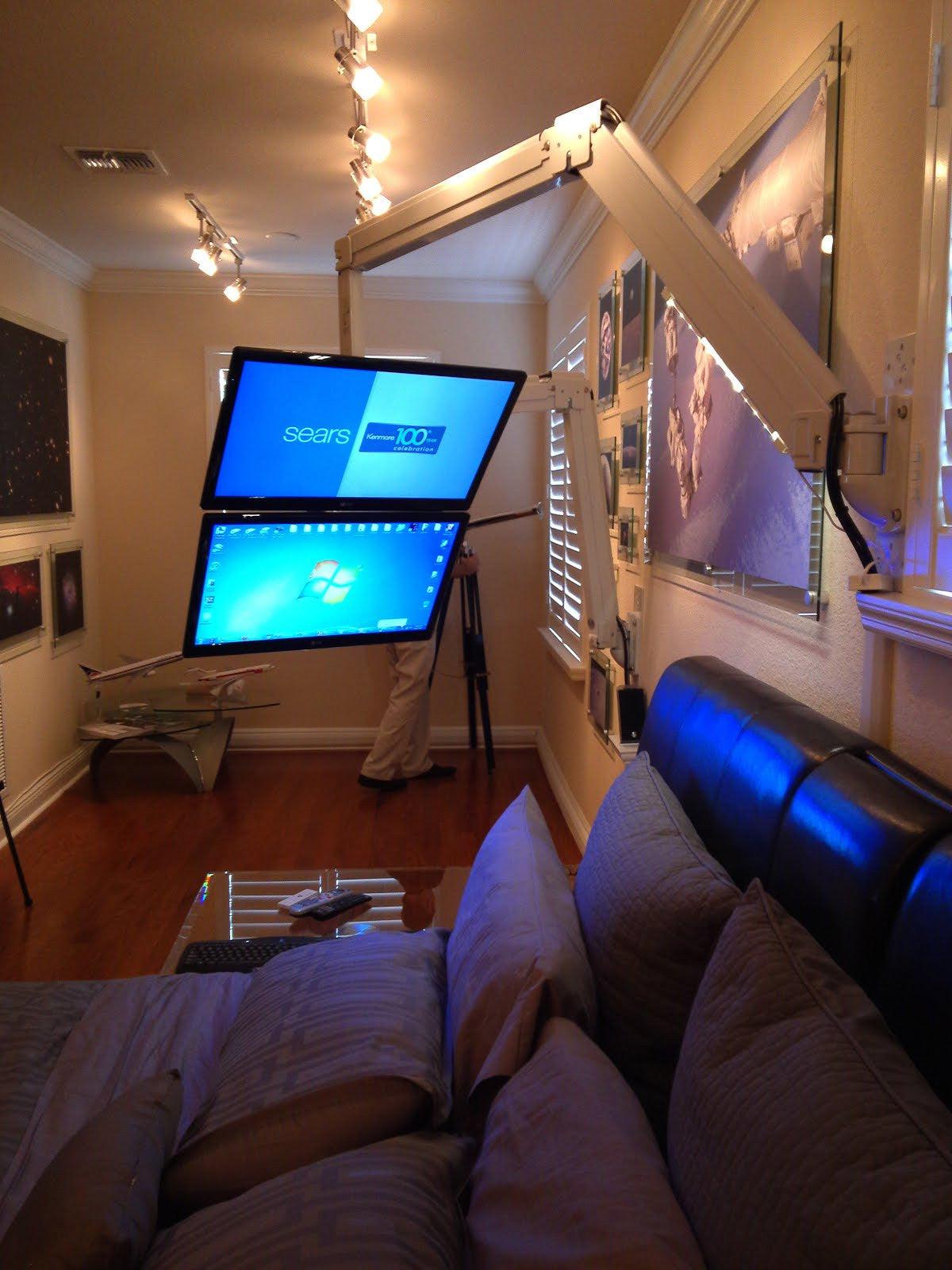

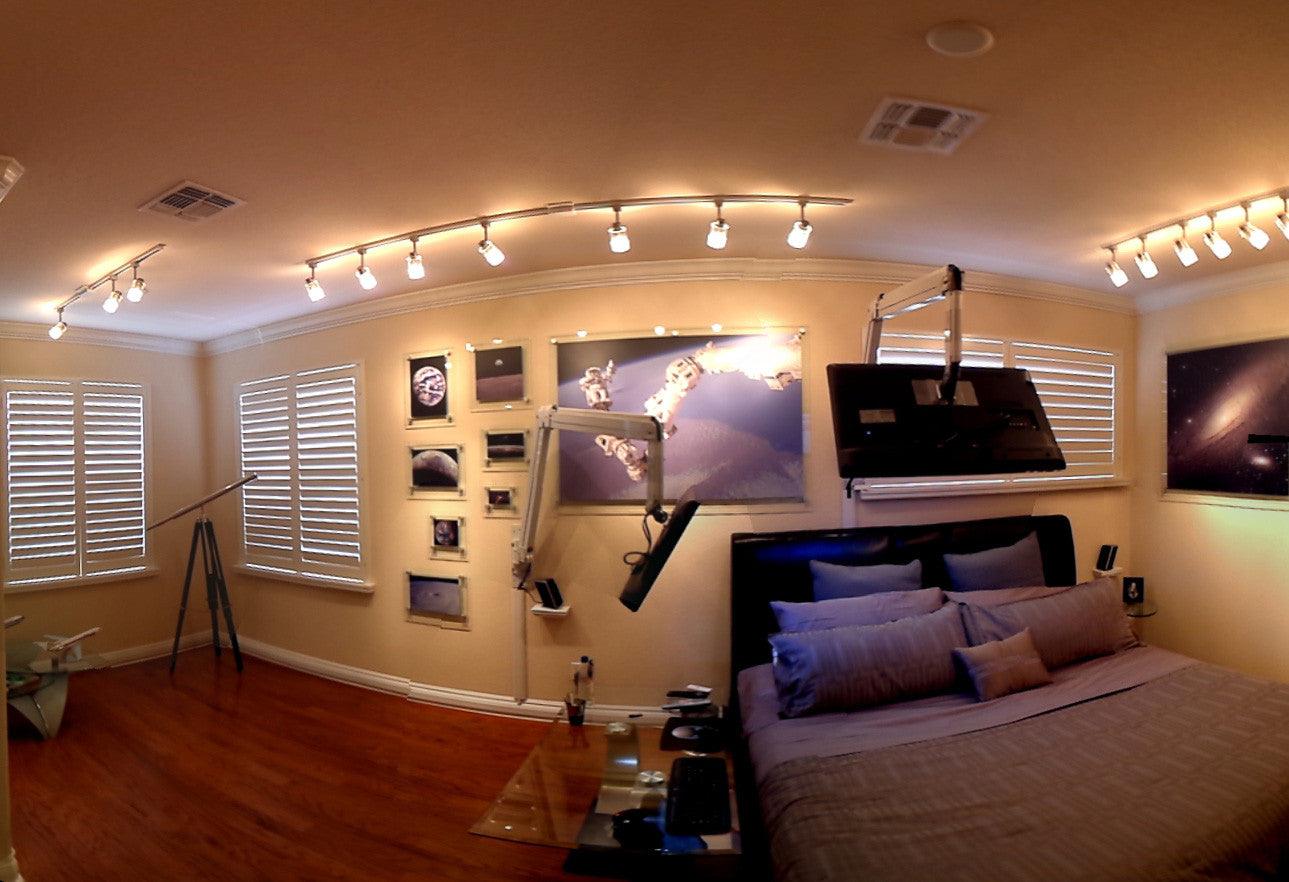

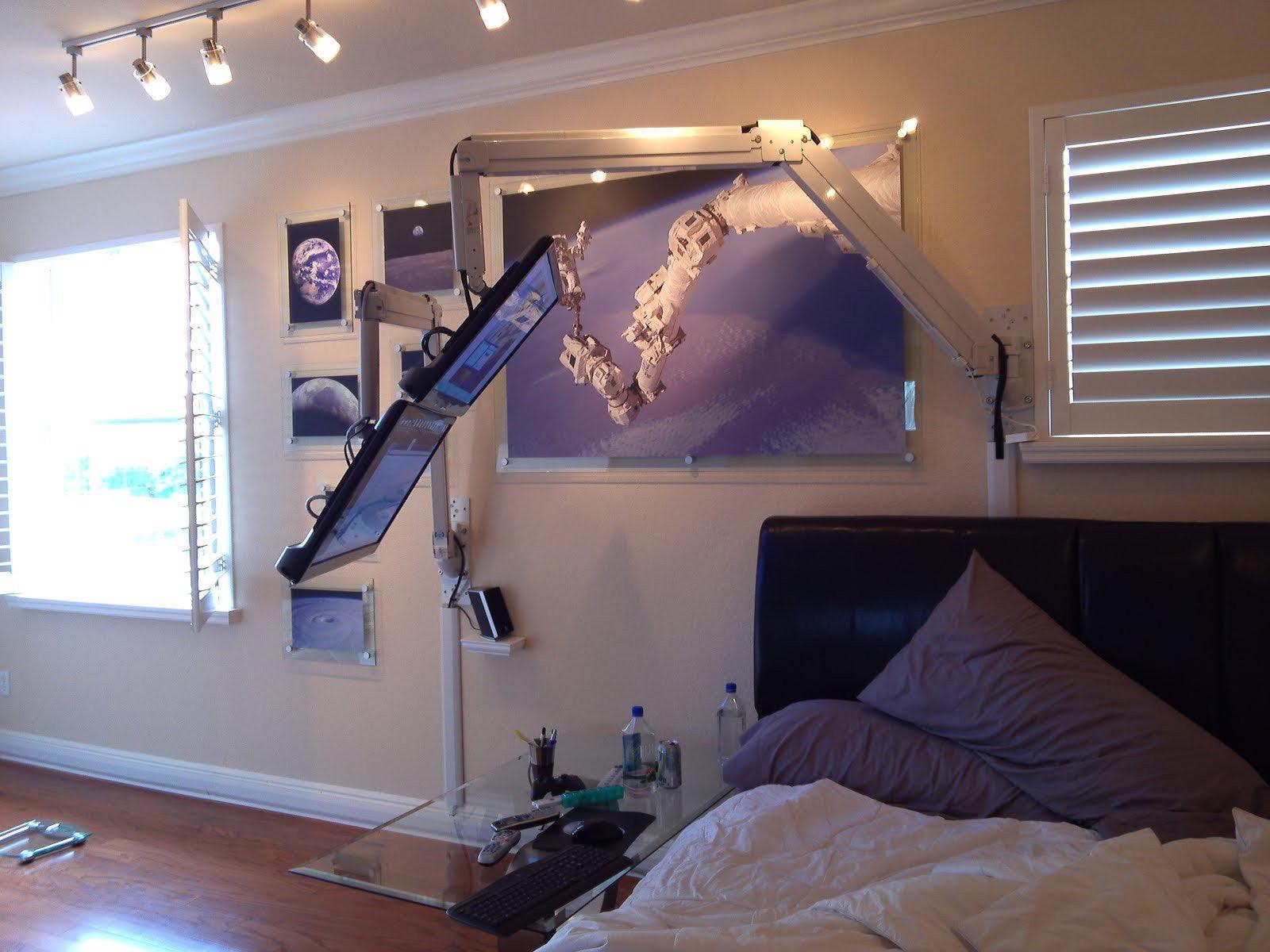

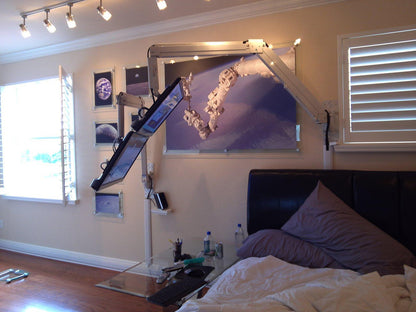

The image below is courtesy of a customer who is bed-ridden and uses 2 monitors simultaneously on 2 of these arms.

Features:

• TV Viewing is totally adjustable:  the VESA Monitor Bracket swivels and tilts so the monitor or TV can even face parallel to the bed, or towards the headboard or any wall and even forward.
  - Tilts all the way in the opposite direction, without the handle attached: (180 degrees total; 45 with handle)
  - Swivels 180 degrees side to side without the handle and 60 with the handle.
  - Rotates 360 degrees

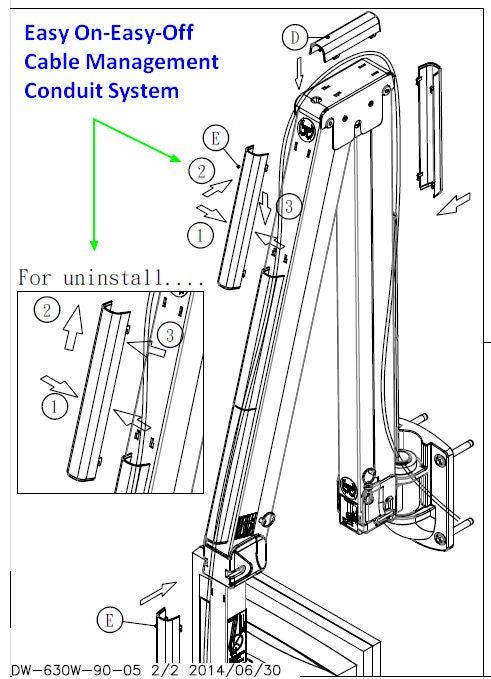

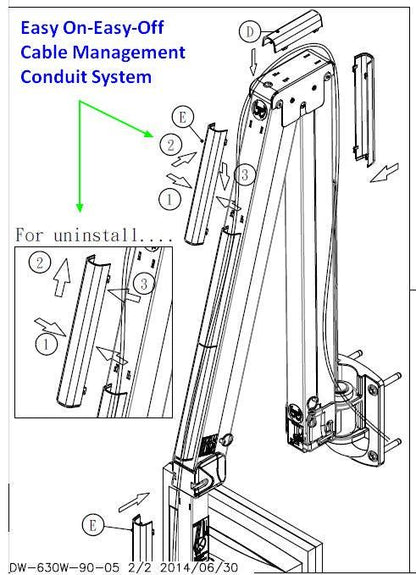

  - Cables run hidden along arm sections, covered by an easily removable cable conduit (see Page 2; Step 5 of Instruction Sheet link below).
  - Cable conduit internal dimensions: 23 H x 26 W mm; 0.9 H x 1.02 W  inches

### Beyond Clinical Use: Gaming & Home Accessibility

While the DW630W is the gold standard for hospital and dental environments, its industrial strength and 63-inch reach make it a favorite for unique home setups:

• For Accessibility & Aging in Place: Perfect for users who are bedridden or have limited mobility. This assistive technology allows you to effortlessly float a screen over a bed or recliner, making entertainment and communication accessible without physical strain.

• For Immersive Gaming: Transform your bedroom into a high-tech cockpit. As one of our users noted, this arm creates a "Cyberpunk" style setup, allowing you to suspend a monitor directly above you for a zero-gravity gaming or movie experience.

• Multi-Purpose Spaces: Instantly swing your monitor from a desk to a bed, or tuck it completely against the wall to save space in small rooms.

Click here for the Instruction Sheet

What fits?

You will have to select the version according to your monitor's weight
a) DW630-1218 Fits monitors weighing from 12 to 18 lbs.
b) DW630-0618 Fits monitors weighing from 6 to 11 lbs.

Note: Please be sure to check the weight of your monitor before ordering.The weight of your monitor is generally specified under your monitor's "Specifications" easily found online. Contact us if you are not sure.

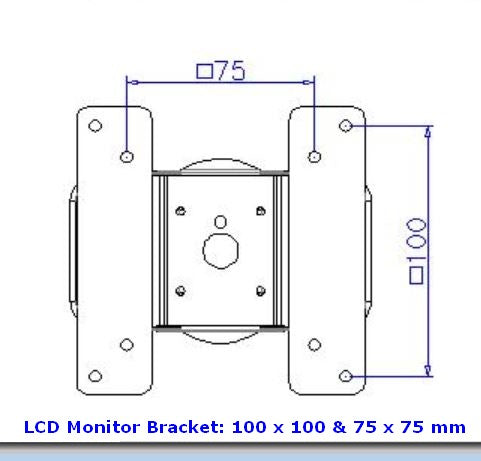

Includes VESA Mounting hole pattern: standard 75 x 75 and 100 x 100 bracket hole-mount pattern. Optional bracket adapter is available for 200 x 100 TVs (DAD200100 see below).  Check that your monitor has mounting holes on the back or if an adapter is available if it doesn't.

Options (must order separately):

a) D-AD200100  VESA 200x100 Adapter

b)  D-REF Installation Reinforcement Plate: to ensure a sturdier installation, especially on hollow walls or non-concrete walls, we recommend the D-REF Installation Reinforcement Plate (see PDF). This increases the footprint of the arm's base and, most importantly, adds 15 extra holes so you can "catch" the stud in the middle of the stud and the base. It also adds more fastening points on the sides to reinforce installation.  Click here to buy.

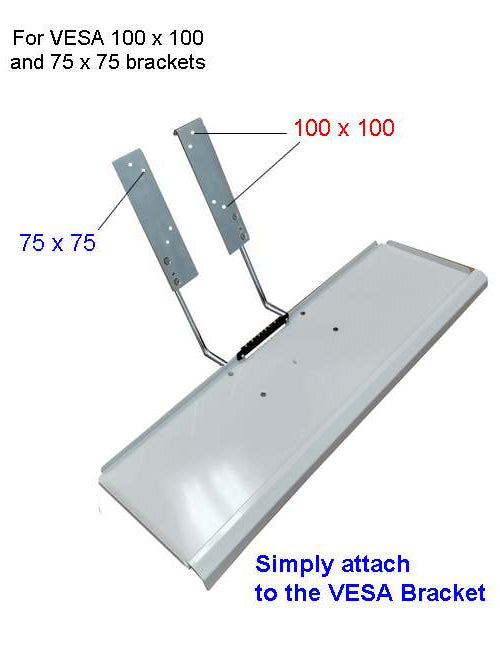

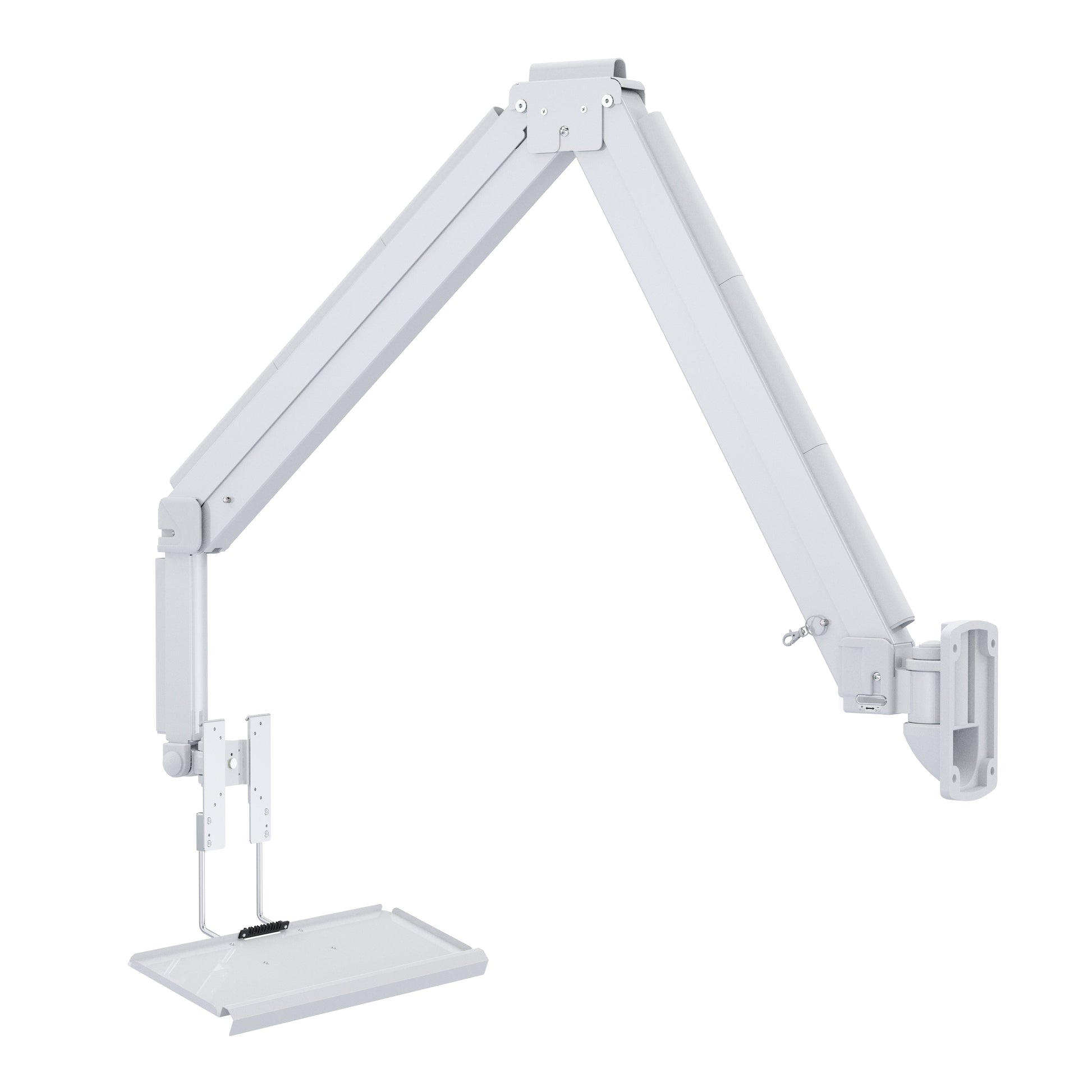

c) DW630-KB Add-On Keyboard Arm: easily add a keyboard arm to your monitor, as shown below:

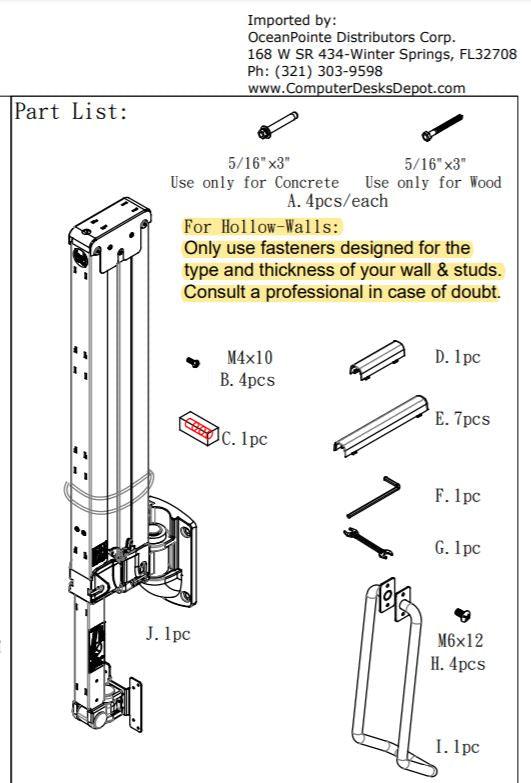

Note for Hollow-Wall installation:
Fasteners are included for most common walls (concrete, wood, hollow). Nevertheless, you must check the characteristics of your particular wall and use the appropriate fasteners. In the case of hollow walls, take into account the material and thickness of your particular hollow-wall. We recommend metal anchors for at least 50 lbs. each, to compensate for the down-force (torque) applied on the base of the arm when it is fully extended, horizontal to the floor. Consult a professional installer in case of doubt. The above D-REF plate aids in securing installation. Always try to catch the stud with at least 2 bolts or reinforce the wall because, while the anchor will surely not break, it might rip-off part of the wall if it is of poor quality.

Versatile:

Try multiple viewing angles, with positioning possibilities greatly facilitated by the double-spring articulated LCD monitor wall arm, which extends all the way to a straight 63" (horizontal to the floor). Then, when not in use, fully push it back against the wall.

The torque of the movements can be adjusted, to suit individual applications.

This hospital LCD wall arm has a great range of motion.

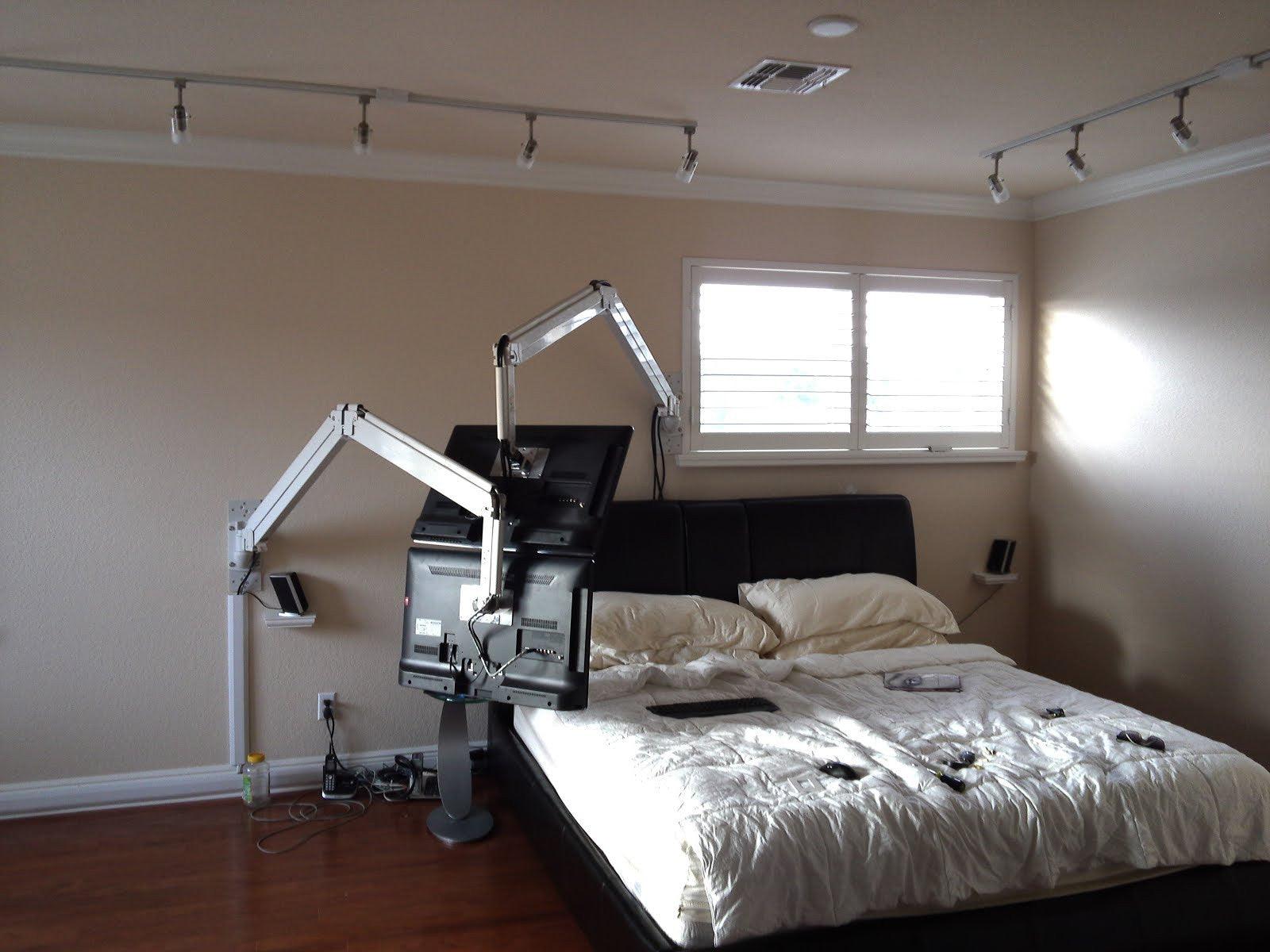

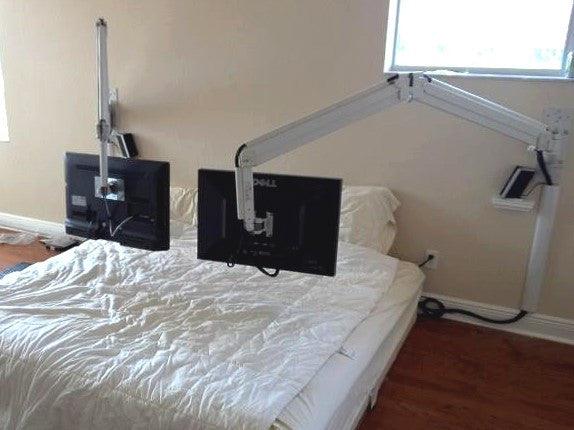

Below is a short video clip courtesy of one of our business customers showing two DW630-1218 arms, one on each side of the bed, installed for a bedridden individual.

1) What monitors will fit?

You must check 2 things:

a) The weight of your monitor (without the stand): we have 2 versions, as explained about, one for monitors weight from 6 - 11 lbs (DW630-06-11) and another version for monitors weighing from 12 - 18 lbs. (DW630-1218). When you order, you MUST choose the version for the weight of your monitor. Otherwise, the monitor will not stay at the height you choose, because the gas springs are expecting the load accorind to the weight of the monitor installed. More info.

b) The VESA Mounting Hole pattern: this is the pattern of the holes you have on the back of your monitor, where the supplied screws will go through the monitor's mounting plate into the back of your monitor. This arm comes for VESA 75 x 75 mm and 100 x 100 mm. For larger monitors you can buy adapters online. Just search for "VESA monitor adapter from 100x100 to 200 x 100" as an example if your TV has the 100 x 200 pattern, for instance. In any case, just contact us. More info.

2) Who are the main users of this extra long monitor arm?

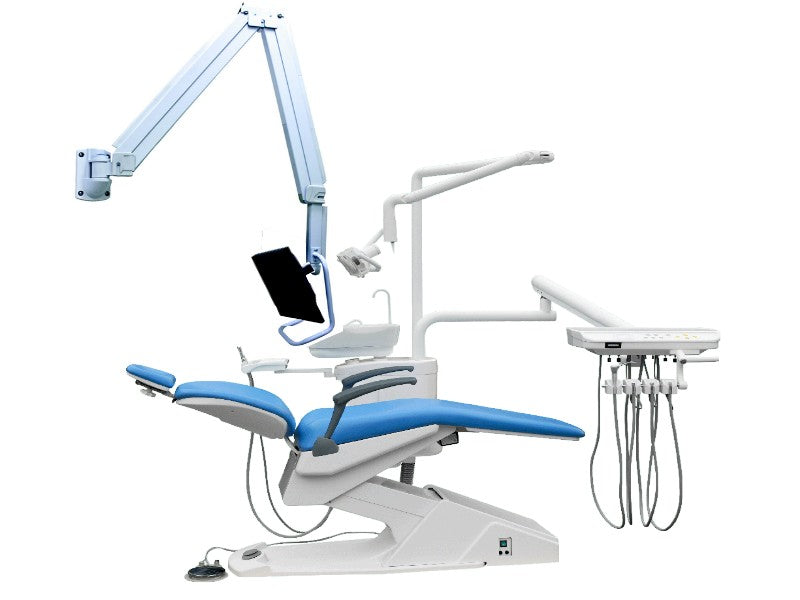

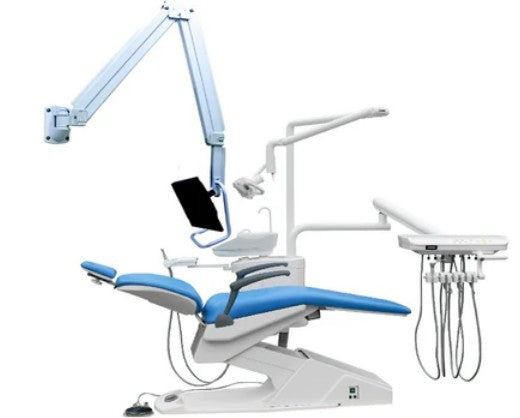

This arm is very popular in Dental Practices, where the Dentist explains procedures to patients, since this long arm can be attached flat to a wall and then be extended in front of the dental chair (kind of like an ex-ray arm) exactly at the patient's comfortable eyesight in order to understand the Dentist's explanations of the imaging shown on the screen. This arm is also used by bed-ridden individuals, who many times also opt for the add-on keyboard tray. Another growing segment are computer-game users and even industries.

3) Can the screen also face forward?

Yes, in one of the thumbnail images below the main image above, you will see that the screen is looking opposite to the wall where it is mounted on. In order to acheive this view, the handle must be removed by taking off 2 screws.

4) Is the item heavy?

This monitor arm is commercial grade, 100% made of steel and weighs 27 lbs. It will last many years.

5) Can the monitor be used in portarit and landscape mode?

Yes, the screen can easily rotate. It also swivels 90 degrees to each side and also tilts.

6) Does this monitor arm come in defferent color?

No, only in white.

7) Can you conceal the cables that go to the screen?

Yes, it includes cable-management conduits that attach to the arm to hide the cabling.
